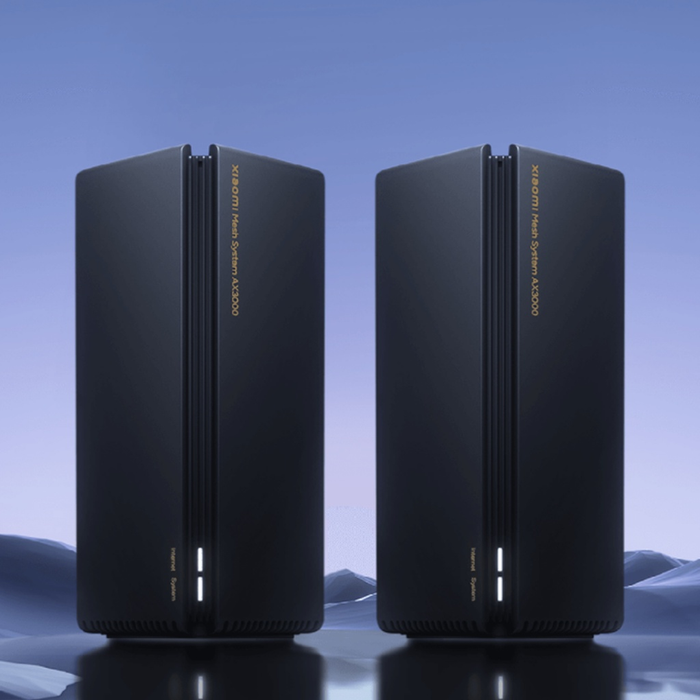

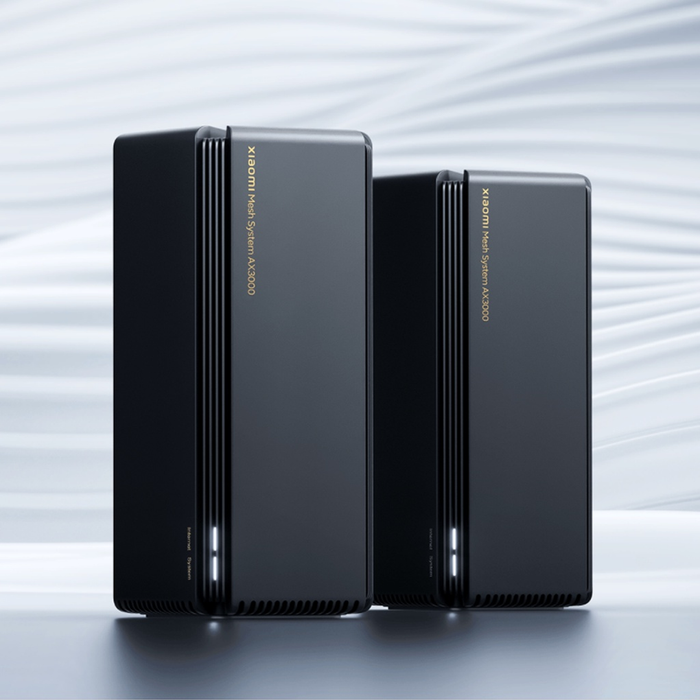

Xiaomi Mesh System AX3000 (2-pack)

Product Details

• Qualcomm® IPQ5000 Dual-core A53 1.0GHz CPU

• Network processing unit

• Single core 1.0GHz NPU

• Memory 256MB

• 2.4G Wi-Fi

• 2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 574Mbps)

• 5GHz Wi-Fi

• 2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 2402Mbps)

• Antennas

• High gain antennas

• Heat dissipation

• Natural heat dissipation

• Total ports

• 1×10/100/1000Mbps self-adaptive WAN port (Auto MDI/MDIX)

• 3×10/100/1000Mbps self-adaptive LAN ports (Auto MDI/MDIX)

• LED indicator light

• 2 lights, System indicator × 1, Internet indicator × 1

• System reset button ×1

• Mesh networking button ×1

• Power input port ×1

• Protocol standards

• IEEE 802.11a/b/g/n/ac/ax，IEEE 802.3/3u/3ab

• Wireless specifications

• Dual-band

• 2.4GHz, 5GHz

• Modulation

• 11b：DSSS：DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)

• 11a/g：OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps),

• 64QAM(48/54Mbps)

• 11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.

• Data rate：MCS0-MCS15

• 11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.

• 11ax：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.

• Data rates: MCS0-MCS11 (supports 2 streams).

• Software specifications

• Operating system

• MiWiFi ROM, a smart router operating system based on OpenWRT

• WiFi Encryption

• WPA-PSK/WPA2-PSK/WPA3-SAE encryption,

• Wireless access control (black and white list), SSID hidden

• Management applications

• Supports Web, Android, iOS

• Working Environment

• Working environment Temperature 0-40℃

• Operating humidity 10%-90%RH (non-condensing)

• Storage temperature -40-70℃

• Storage humidity 5%-90%RH (non-condensing)

NTC APPROVED
