Specifications
Dimensions : 188 mm x 100.5 mm x 175 mm

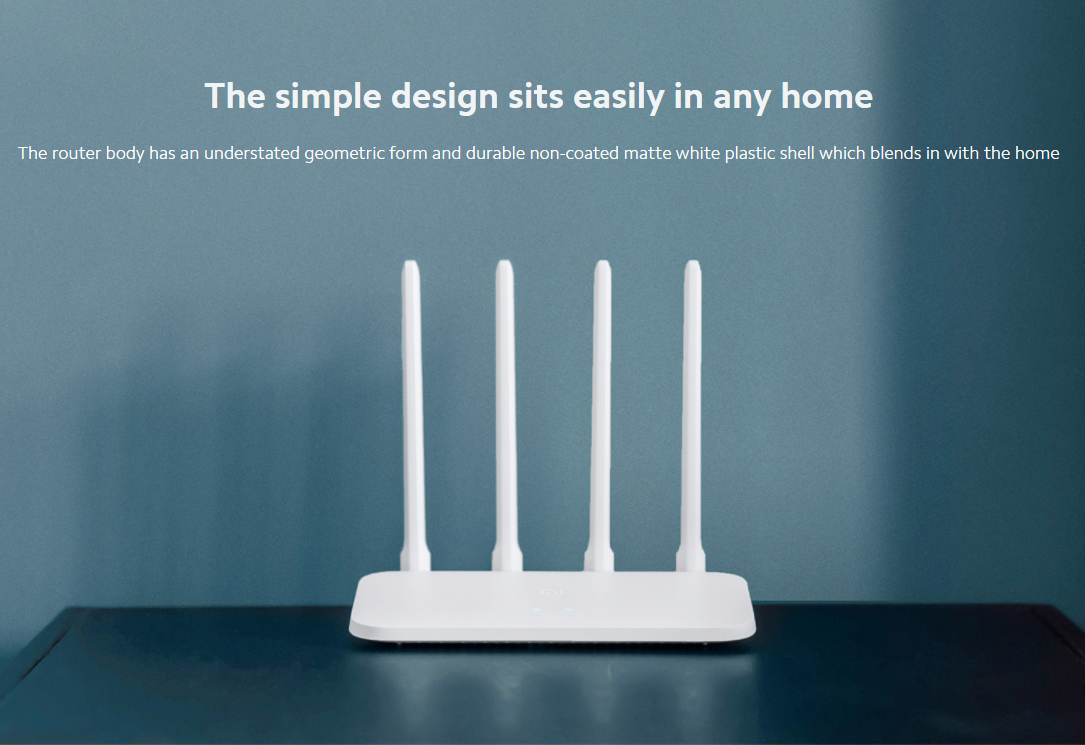

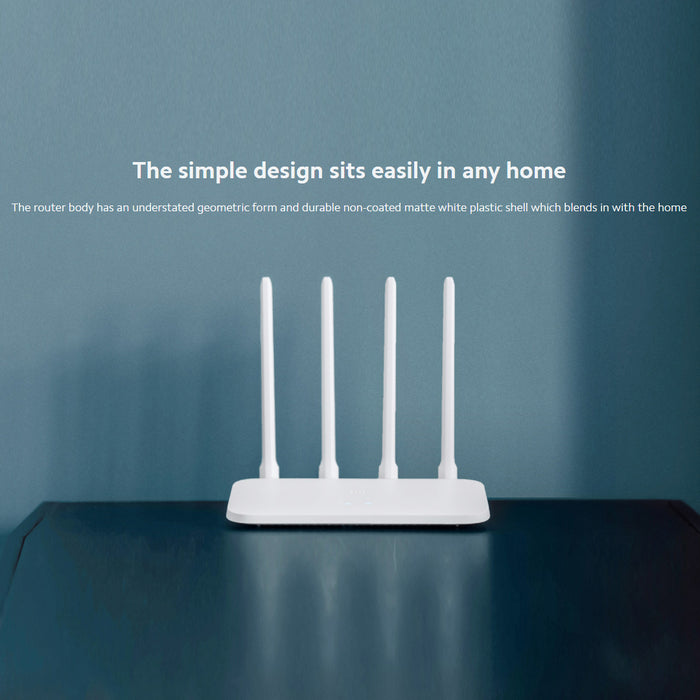

Product color : White
Processor : MT7628DA
ROM : 16MB
Internal memory : 64MB
2.4GHz Wi-Fi : 2x2 (supports the IEEE 802.11n protocol, maximum possible speed of 300Mbps)
5GHz Wi-Fi : 2x2 (supports the IEEE 802.11ac protocol, maximum possible speed of 867Mbps)

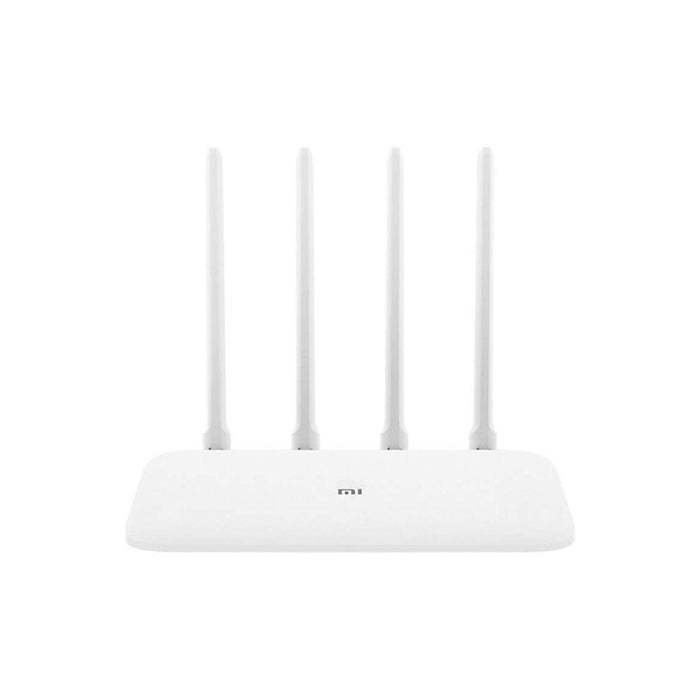

Product antennas : 4 external omnidirectional antennas (two 2.4GHz antennas with maximum gain of 5dBi; two 5GHz antennas with maximum gain of 6dBi)
Product heat dissipation : Natural heat dissipation

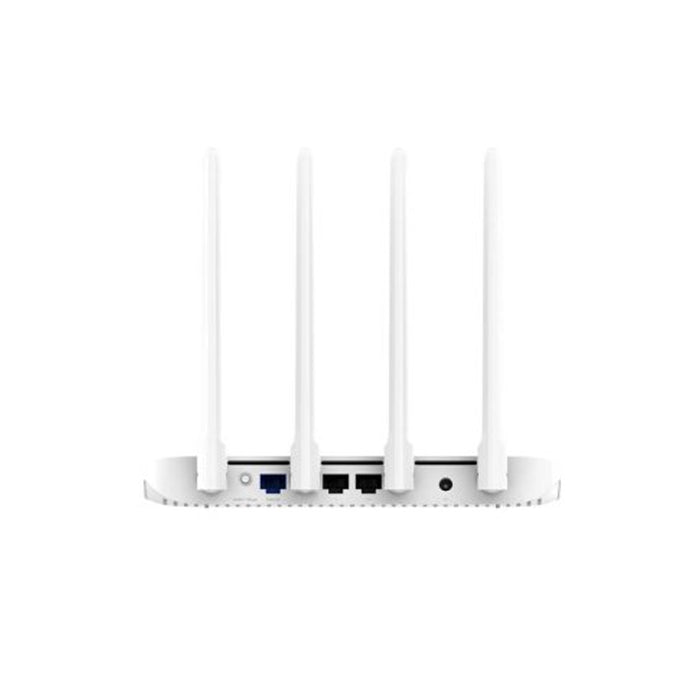

Total interfaces : Two 10/100M self-adaptive LAN ports (Auto MDI/MDIX)
                            One 10/100M self-adaptive WAN port (Auto MDI/MDIX)
LED indicator lights : 2
System reset buttons : 1
Power input interface : 1
Protocol standards : IEEE 802.11a/b/g/n/ac, IEEE 802.3/3u
Certification standards : GB9254-2008 YD/T993-1998 GB4943.1-2011
Warranty information : 1 year whole device warranty

Wireless specifications

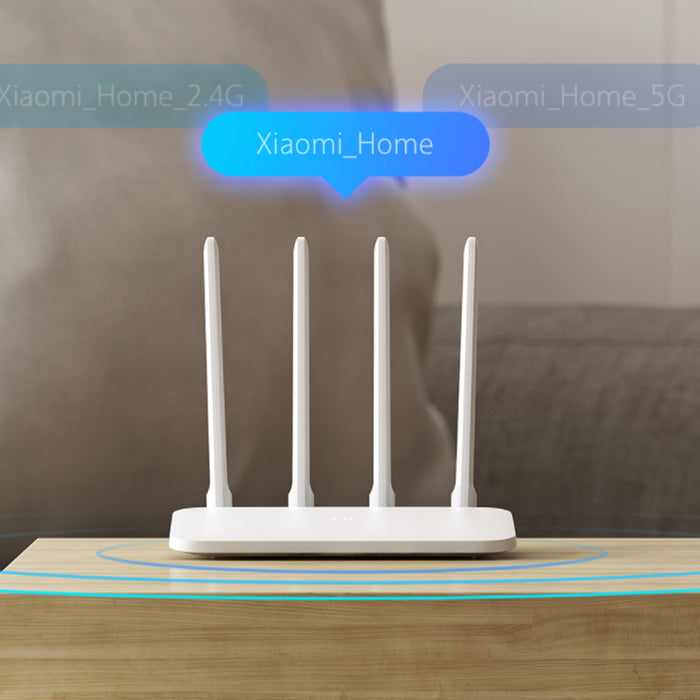

Dual band : 2.4GHz and 5GHz
Modulation : 11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)
                      11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps),
 64QAM (48/54Mbps)
                       11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS15
                       11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set:
MCS0 to MCS9 (supports 2 streams)

WiFi transmission power
CE EIRP:<20dBm(2.4GHz)
                <23dBm(5GHz)

Software specifications
Operating system : Mi Wi-Fi ROM intelligent router operating system based on a highly customized version of OpenWRT

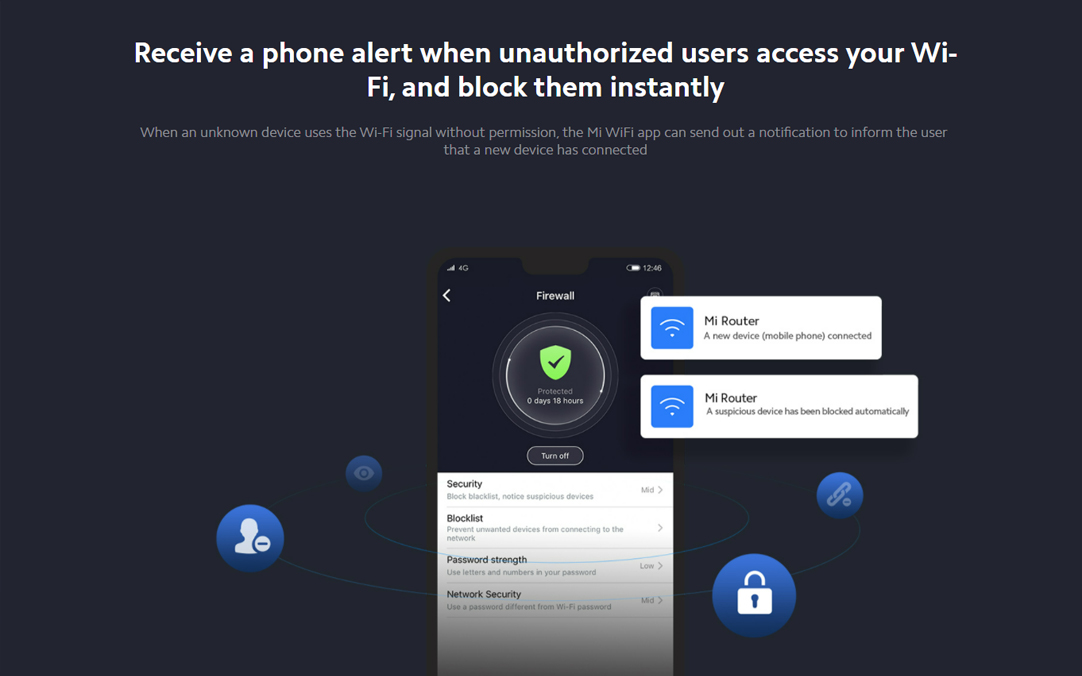

Wireless security : WPA-PSK/WPA-PSK2 encryption, wireless access control (blacklist and whitelist), SSID hiding, smart unauthorized access prevention
Management Application : Supports web, Android, and iOS
Product accessories : 1 x user manual (includes warranty card) 1 x product power supply (12V/0.6A)
Operating environment : 0–40°C
Operating temperature: 0–40°C
Operating humidity : 10%–90% RH (no condensation)
Storage temperature : -40–70°C
Storage humidity:  : 5%–90% RH (no condensation)

NTC APPROVED
